1. Grating Fundamentals & Industrial Applications

Grating systems, engineered load-bearing structures comprising bearing bars and cross connectors, serve critical functions in 35+ industries per ISO 1461 standards. Key performance characteristics include:

1. Load distribution capacity: Up to 6.5 tons/m² (BS 4592-1).

2. Slip resistance: R13 classification (DIN 51130).

3. Open area ratio: Adjustable 25-78% for fluid dynamics.

Industry-Specific Implementations:

1. Offshore platforms: 2205 duplex stainless steel grating with 25-year seawater corrosion resistance.

2. Power plants: Galvanized steel grating meeting NEMA VE 1 explosion-proof requirements.

3. Food processing: FDA-compliant resin-coated FRP grating with 86° antibacterial edges.

2. Multi-Dimensional Classification System

2.1 Material Classification Matrix

Metallic Grating

Stainless Steel Series:

Grade 304/316L: ASTM A276 compliance for chemical plants.

430 Ferritic: Magnetic properties for electronic facilities.

Carbon Steel:

Hot-dip galvanized (HDG): Minimum 610g/m² zinc coating (ISO 1461).

Powder-coated: 76μm DFT epoxy coating for UV protection.

Aluminum Alloys:

5083-H111 marine-grade: Salt spray resistance >3,000hrs (ASTM B117).

Non-Metallic Grating

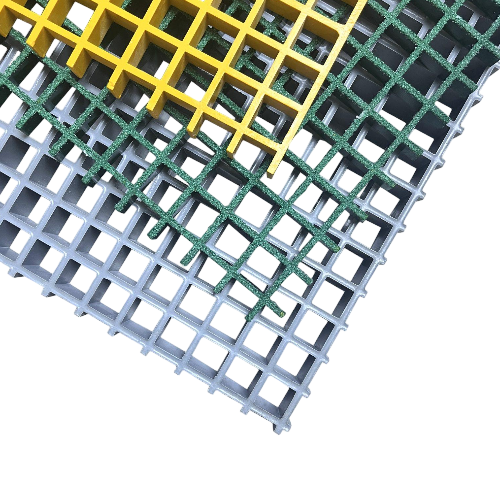

Fiberglass Reinforced Plastic (FRP):

Fire-retardant grade: Oxygen index >28 (ASTM D2863).

Conductive type: Surface resistance <10⁶Ω (ATEX Directive).

Polymer Solutions:

UHMWPE: Abrasion resistance 8x steel (ISO 4649).

PVC: Working temperature range -40°C to +60°C.

2.2 Manufacturing Process Comparison

2.3 Surface Treatment Technologies

Zinc-Aluminum Coating (Galfan®): 95%Zn-5%Al alloy, 2x HDG lifespan.

Electropolishing: Ra 0.4-0.8μm finish for pharmaceutical cleanrooms.

Thermal Spray Aluminum (TSA): 150-200μm coating for splash zones.

3. Technical Selection Parameters
