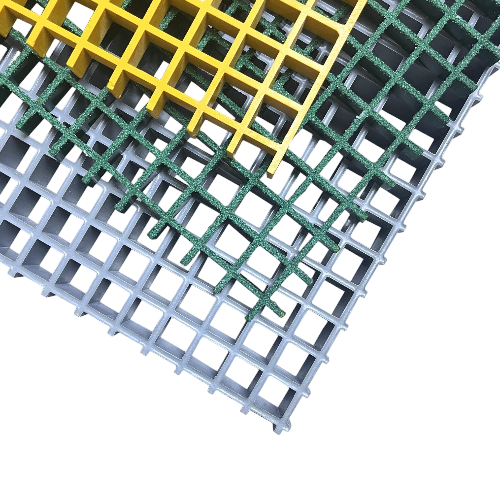

FRP Grating

Item No.: FRPG1P
FRP (Fiberglass Reinforced Plastic) Grating redefines industrial structural solutions with its advanced polymer-fiber composite technology.
Description
Description

FRP Grating Technical Specifications & Global Application Solutions


Product Overview: Revolutionary Composite Material

FRP Grating (Fiberglass Reinforced Plastic Grating) is a porous grid structure manufactured through advanced molding or pultrusion processes, combining high-performance resins with glass fiber reinforcement. As a superior alternative to traditional metal gratings, this composite material integrates lightweight design (1.8-2.0 g/cm³ density), exceptional corrosion resistance, and structural integrity. Modular configurations support customized dimensions (e.g., 1220×3660mm standard panels) with surface treatments like diamond tread, grit finish, or dual-planar designs for enhanced slip resistance.

Manufactured under ISO 9001-certified systems, two primary production methods dominate:

Molding Process: Ideal for complex geometries with multidirectional strength

Pultrusion Process: Delivers unidirectional reinforcement for heavy-load applications.



Core Performance Advantages

1. Unmatched Corrosion Resistance

Compatible with pH 1-14 environments including acids, alkalis, hydrocarbons, and seawater.

Resin options: Orthophthalic (general use), Isophthalic (enhanced chemical resistance), Vinyl Ester (extreme conditions).

2. High Strength-to-Weight Ratio

Tensile strength exceeds 300 MPa, supporting up to 5 tons/m² load capacity at 3m spans.

Pultruded variants achieve 60%+ glass fiber content for 40% greater longitudinal strength vs. molded counterparts.

3. Intrinsic Safety Features

UL-certified flame retardant formulations (Oxygen Index ≥28, Flame Spread ≤25 per ASTM E-84).

Non-conductive properties (10kV dielectric strength) eliminate spark risks in explosive environments.

4. Lifecycle Cost Efficiency

UV-stabilized surfaces withstand -50°C to 150°C without degradation.

20-year service life in coastal areas at 1/3 the cost of stainless steel solutions.



Global Applications & Case Studies

1. Energy & Heavy Industry

Offshore platforms: Saudi Aramco utilizes grit-top panels for oil-resistant decking.

Flue gas desulfurization: German power plants deploy vinyl ester gratings in pH 2.5 wet scrubber environments.

2. Environmental Infrastructure

Wastewater treatment: 38mm thick gratings in São Paulo's aeration channels resist H₂S corrosion.

Marine walkways: Singapore's coastal boardwalks maintain structural integrity after 15 years.

3. Specialized Sectors

Food processing: EU-compliant smooth-surface gratings for hygienic seafood facilities.

Military: US Navy vessels install fire-retardant gratings meeting MIL-STD-1623A blast standards.



Manufacturing & Quality Assurance

1. Premium Raw Materials

Reinforcement: ECR glass fibers (≥3400 MPa tensile strength).

Resin systems: Ashland/Showa resins with 18-22 mgKOH/g acid value for optimal curing.

2. Advanced Production

Molding: Layer stacking → vacuum infusion → 160°C thermal curing.

Pultrusion: Continuous fiber alignment → resin saturation → die-forming with real-time stress monitoring.

3. Rigorous Testing Protocols

Mechanical: ASTM D790 bending & D638 tensile tests.

Weathering: 3000-hour QUV exposure with ΔE≤2.5 color stability.


Client-Centric Services

Custom Solutions: ASTM/ISO/JIS-compliant designs with 7-day sample turnaround.

Global Logistics: 300㎡/20GP container optimization + DDP delivery.

Technical Support: Free load-calculation software & installation guides.



Certifications & Sustainability

Compliant with ISO 9001:2015, CE, RoHS, and DNV GL marine standards. Closed-mold processes reduce VOC emissions by 90%, while recycled scraps repurpose into manhole covers, achieving full material circularity.
