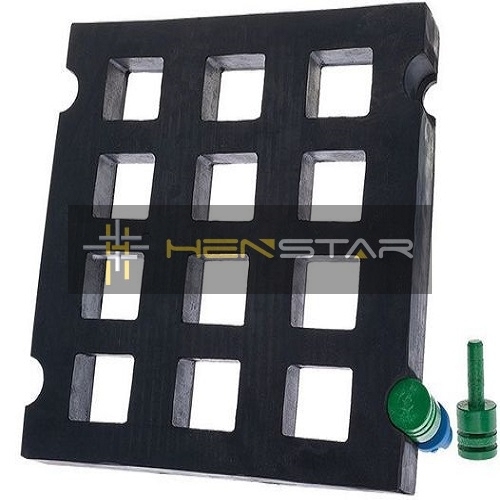

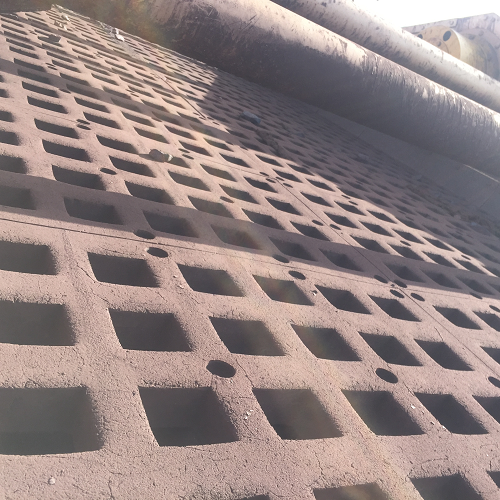

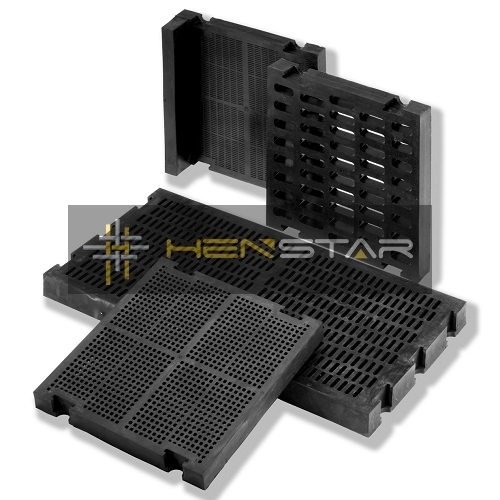

Rubber modular vibrating screen panel is a specialized rubber composite plate, embeded in normmaly with canvas, nylon, steel plate or steel wire as skeleton as the reinforcement for tensioning, primarily for fine to medium coarse screening in dry applications, mainly used in the process of classification of solid material for heavy duty. Holes can be desined as rectangular pyramid to avoid blinding and plugging.
General specifications:
Material: rubber.
Thickness Options: 7mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm.
Aperture type: Square, circular, rectangular, and oblong.
Aperture size: 5mm-250mm.
Panel size: Width≦1500mm, Length≦2950mm.
Connection type: bolt, mosaic or layering(depression bar).
Customization: Tailored dimensions and performance attributes available
*****Customization accepted******
Performance features:
1. Exceptional Wear Resistance: Highly impact-absorbent, offering 4–8 times longer service life compared to metal counterparts under normal operating conditions.
2. Noise and Dust Reduction: Reduces operational noise by 5–20 dB and significantly minimizes dust dispersion, fostering a cleaner and quieter workplace.
3. Lightweight and Easy Handling: A 15mm-thick plate weighs less than 15 kg/m², reducing equipment load and energy consumption.
4. Anti-Blocking Design: Elastic relaxation properties (minor periodic aperture changes under stress) and inverted conical holes enhance self-cleaning capabilities, preventing material clogging.
5. High Screening Precision: Precision-punched apertures ensure dimensional accuracy, surpassing woven screens in classification efficiency
Main applications:
Compared with wire screen mats and PU screen mats, rubber modular screen panels are outstanding for the purposes of screening, grading of larger grained objects, as the best protection for vibrating screens, especially for heavy dudy conduct.
