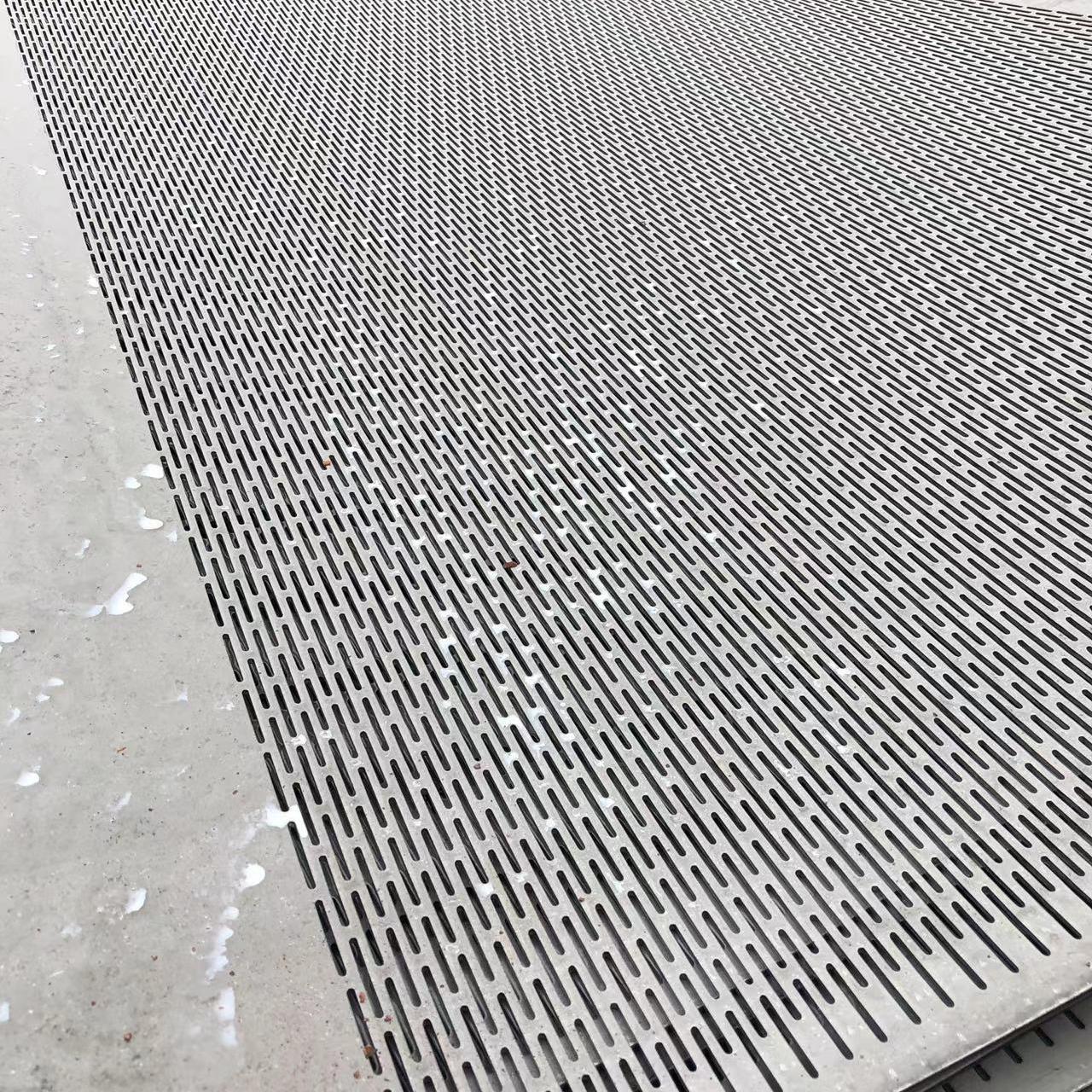

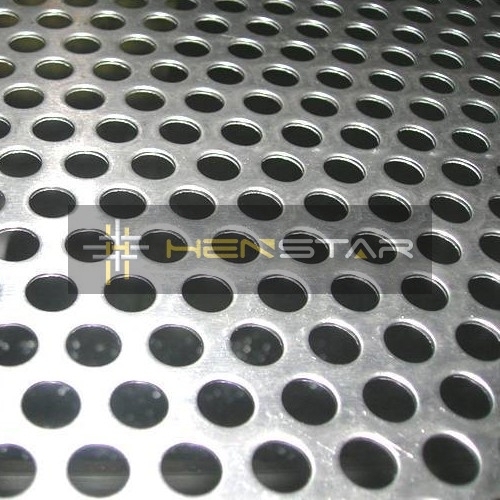

Perforated metal screen panel, also known as punch plate, is a frequently-used screen media for vibrating screens and trommel screens, manufactured from perforated steel sheet. For the different operating conditions and customer demands, these panels can be made of diffrent matel materials, such as mild steel sheet, manganese steel sheet and stainless steel, and perforated into different aperture shapes, such as round hole, oval hole, rectangular hole, slot hole and hexagonal hole.
Among all the above-mentioned panels of different metal materials, mild steel perforated vibrating screen panel is of the best cost performance, while the perforated vibrating screen panel made of manganese steel enjoys higher tensile strength and better wear resistance. Perforated vibrating screen panel made of stainless steel performs best when it comes to the acid, alkali and abrasion.
Due to the perforating manufacture craft, all these perforated metal vibrating screen panels have an obvious advantage, the most smooth and slippy surface, which conduces to the increase of the efficiency of screening and separating and decrease of the blocking rate.
General specifications:
Material: mild steel sheet, manganese steel sheet and stainless steel sheet.
Thickness: 0.5mm - 20mm
Aperture type: round, square, rectangular, slot or hexagonal.
Panel size: width≦1500mm, length≦2900mm.
Connection type: hook, bolt or layering(depression bar).
| Hole Type | Aperture Range | Common Applications |
| Round Holes | 0.2–200 mm | Particle sizing, acoustic panels |
| Square Holes | 0.5–100 mm | Grain sorting, conveyor belts |
| Slotted (Long Holes) | 1×5–10×50 mm | Liquid filtration, mining screens |
| Hexagonal | 5–25 mm | Decorative façades, HVAC vents |
| Custom (Fish Scale, etc.) | Per client design | Specialized machinery guards |
*****Customization accepted******
Performance features:
1.Smooth and slippy surface.
2.Flexibility in use.
3.Cost-effective.
4.Acid and alkali resistance.
Main applications:
Perforated metal screen panels are made for the purposes of washing, screening, grading of various materials, as the important parts of all kinds of mainstream vibrating screens and trommel screens. Furthermore, the application fields are very broad,such as ferrous and nonferrous metallurgy (iron ore, manganese ore, lead zinc ore, limestone, fluorite, cooling blast furnace slag, coke, and other raw materials), building material, abrasive waste disposal, quarries, etc.
